Apollo Stainless Steel Valves
บอลวาล์วสเตนเลส Apollo

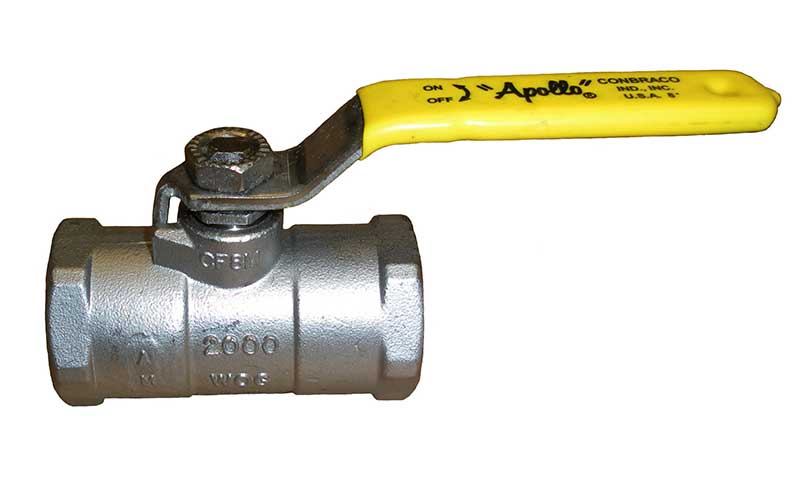

Apollo: 96-100 Series
Stainless Steel Unibody Ball Valve
2000 psi. CWP, 150 psi. SWP
- Size: 1/4" - 2" Threaded NPT
- Max Operating Pressure:
- 2000 psig CWP 1/4" - 1"
- 1500 psig CWP 1-1/4" - 2"
- 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body : A351-CF8M
- Features:
- Fire safe to API 607 (requires -24 suffix)
- Investment Cast Body
- Blow-out-proof Stem Design
- Reinforced Seats and Seals
- Adjustable Packing Gland
- Compact

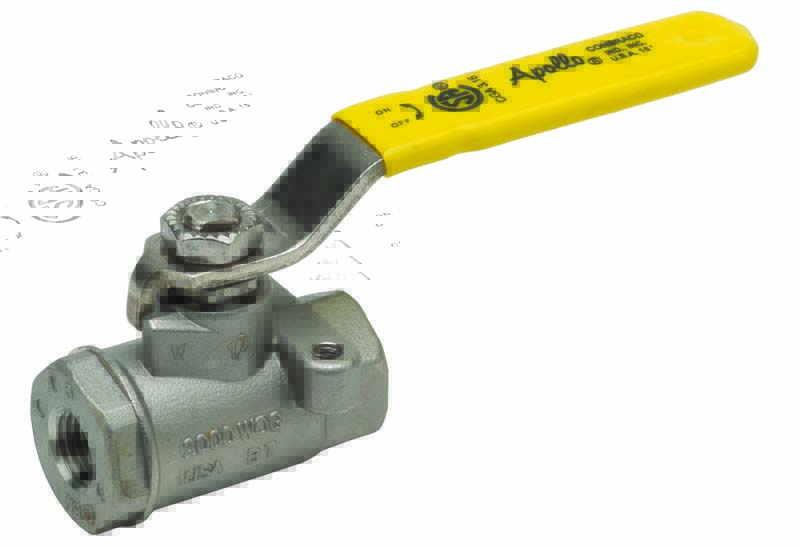

Apollo: 76-100 Series
Stainless Steel Ball Valve
2000 psi. WOG 150 psi. SWP
- Size: 1/4" - 2" Threaded NPT
- Max Operating Pressure:
- 2000 psig CWP 1/4" - 1"
- 1500 psig CWP 1-1/4" - 2"
- 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body : A351-CF8M
- Features:
- Fire safe to API 607 (requires -24 suffix)
- Investment Cast Body
- Mounting Pad for Easy Actuator Mounting
- Blow-out-proof Stem Design
- Reinforced Seats and Seals
- Adjustable Packing Gland
- SS Lever and Nut
-

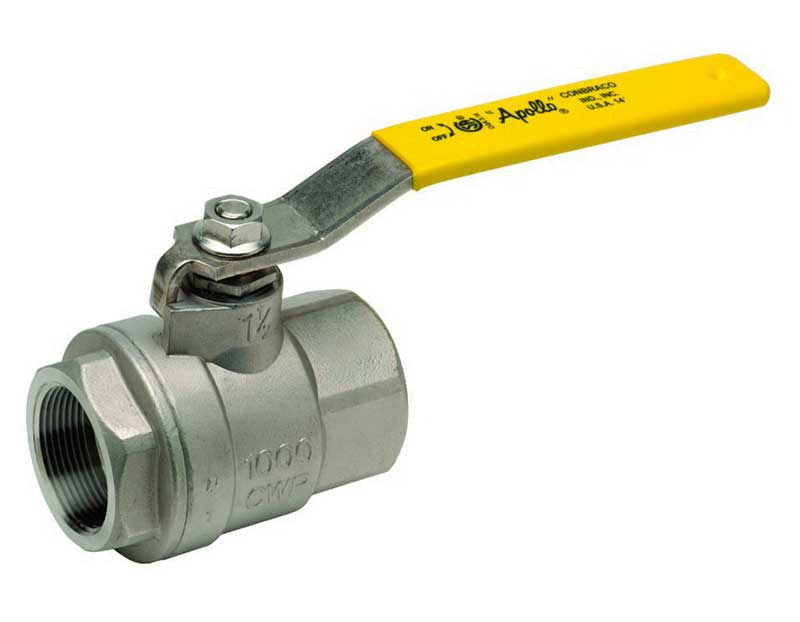

Apollo: 76F-100 Series
Stainless Steel Full Port Ball Valve
1000 psi. CWP, 150 psi. SWP
- Size: 1/2" - 2" Threaded NPT
- Max Operating Pressure:
- 1000 psig CWP Cold Non-Shock
- 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body :A351-CF8M
- Features:
- Investment Cast Components
- Reinforced Seats
- Two-Piece Body
- Blow-out-proof Stem Design
- Adjustable Packing Gland
- SS Lever and Nut
-

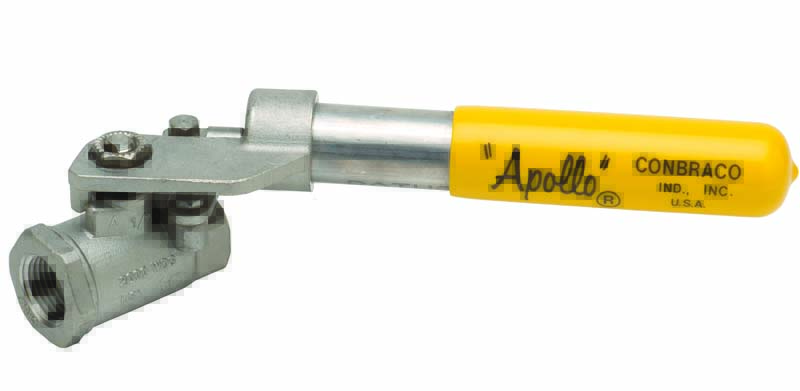

Apollo: 76-500 Series
SS Ball Valve w Spring Return Handle
2000 psi. CWP, 150 psi. SWP
- Size: 1/4" - 2" Threaded NPT
- Max Operating Pressure:
- 2000 psig CWP 1/4" - 1"
- 1500 psig CWP 1-1/4" - 2"
- 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body :A351-CF8M
- Features:
- Spring Return To Close or Open
- All components of lever are SS
- Operating Torque is Approximately 3-Times Standard Valve Torque
- Reinforced Seats
- Blow-out-proof Stem Design
- Adjustable Packing Gland
- Investment Cast Components
-

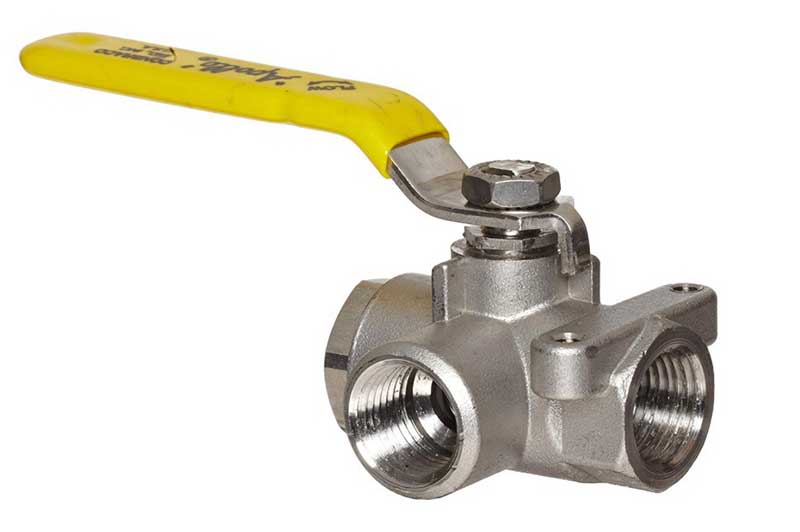

Apollo: 76-600 Series
Stainless Steel 3-Way Ball Valve
800 psi. CWP Cold Non-Shock
- Size: 1/4" - 2" Threaded NPT
- Max Operating Pressure:
- 800 psig Cold Non-Shock
- Material Body : A351-CF8M
- Features:
- Reinforced Seats
- Investment Cast Body
- Blow-out-proof Stem Design
- Adjustable Packing Gland
- NSF/ANSI 61, Annex G
-

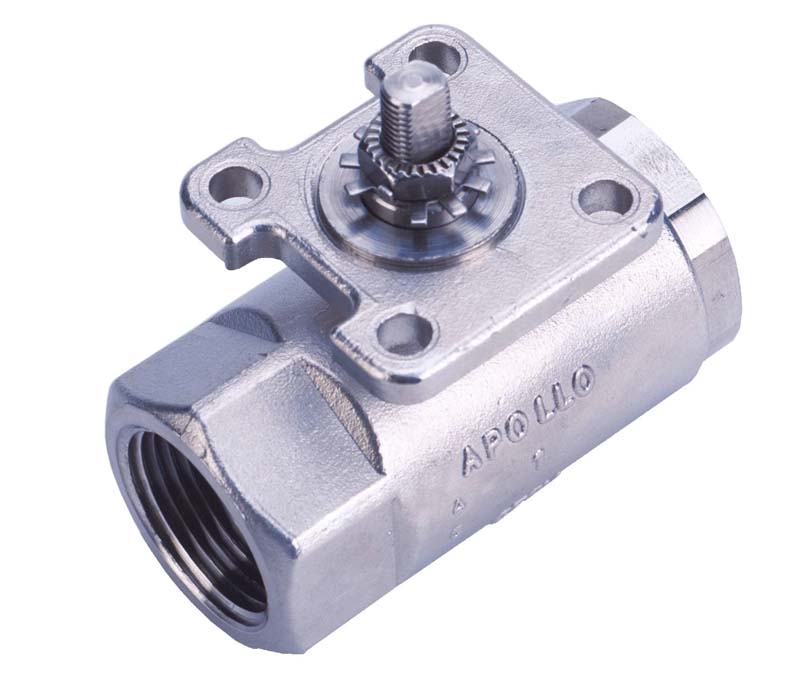

Apollo: 76-AR Series
SS Std.Port Ball Valve w/Actuator Ready
2000 psi. CWP, 250 psi. SWP
- Size: 1/4" - 3" Threaded NPT
- Max Operating Pressure:
- 2000 psig CWP 1/4"-1"
- 1500 psig CWP 1-1/4" - 2"
- 1000 psig CWP 2-1/2" - 3"
- 250 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body : A351-CF8M
- Features:
- Multi-Piece Packing Set
- ISO 5211 Mounting Pad
- Fire Safe “by Design” (Requires -24 Suffix)
- Multifill PTFE Seat
- Blow-out-proof Stem Design
- Adjustable Packing Gland
-
