Apollo Carbon Steel Valves
บอลวาล์วเหล็กเหนียว Apollo

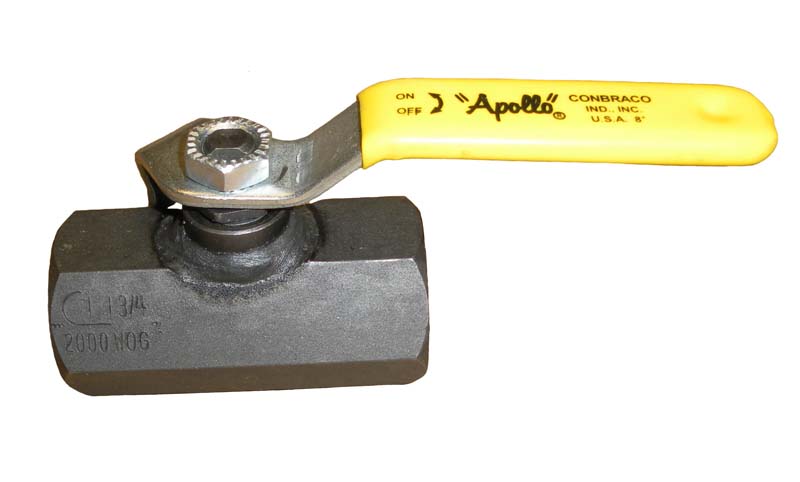

Apollo: 93-100 Series
Carbon Steel Unibody Ball
Valve
2000 psi. CWP, 150 psi. SWP
- Size: 1/4" - 2" Threaded NPT
- Max Operating Pressure:
- 2000 psig CWP 1/4" - 1"
- 1500 psig CWP 1-1/4" - 2"
- 150 psig Saturated Steam
- Material Body : A108-CS
- Variation : 93-140 SS Ball & Stem
- Features:
- Fire safe to API 607 (requires -24 suffix)
- Unibody barstock steel design
- Blow-out-proof Stem Design
- Reinforced seats and seals
- Adjustable Packing Gland
- Compact
- Zinc Phosphate corrosion protection

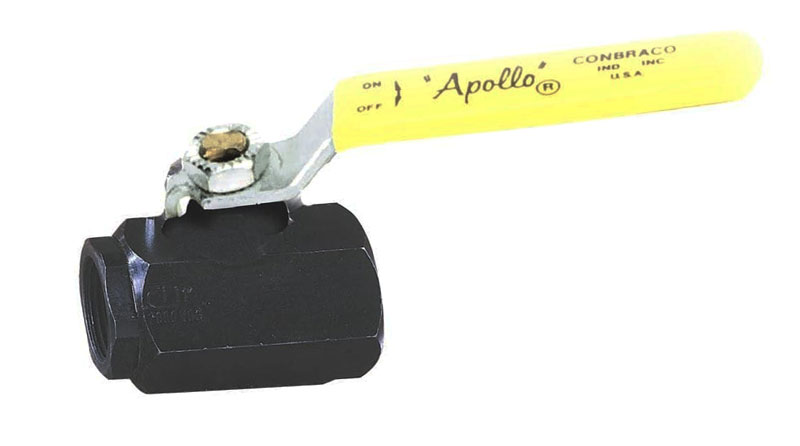

Apollo: 72-100 Series
Carbon Steel High Pressure Ball
Valve
3000 psi. WOG 150 psi. SWP
- Size: 1/2" - 2" Threaded NPT
- Max Operating Pressure:
- 3000 psig WOG, Cold Non-Shock
- 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body : A108-CS
- Features:
- Full Port, Except 2"
- Barstock Design
- Blow-out-proof Stem Design
- Reinforced Seat
- Adjustable Packing Gland
-

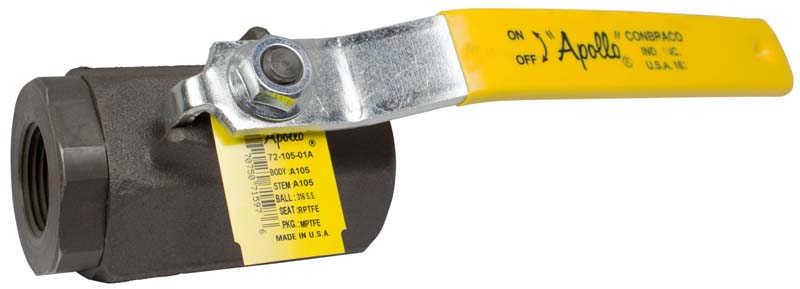

Apollo: 72-9XX-A Series
Carbon Steel SAE Straight Thread Ball Valve
3000 psi. CWP, 150 psi. SWP
- Size: 1/4" - 2" Threaded NPT
- Max Operating Pressure:
- 3000 psig WOG, Cold Non-Shock
- 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body : A108-CS
- Features:
- SAE J512/J514 straight thread o-ring boss
- Full Port
- Forged Body Design
- Fire safe “by design” (requires -24 suffix)
- Blow-out-proof Stem Design
- Reinforced Seat
- Adjustable Packing Gland
- Zinc Phosphate corrosion protection
-

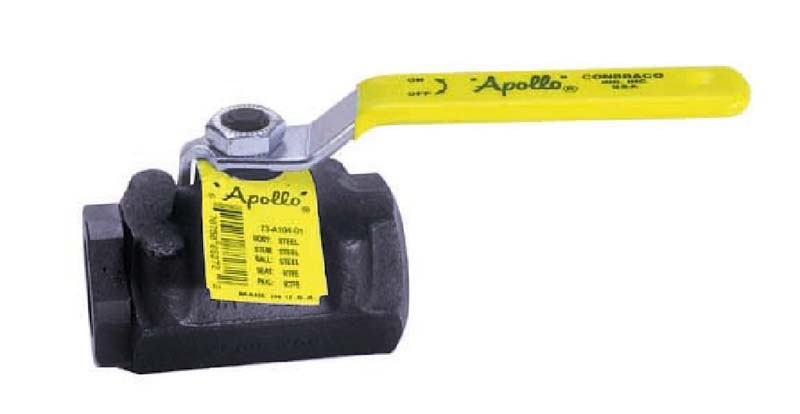

Apollo: 73A-100 Series
Carbon Steel Ball Valve
2000 psi. CWP, 150 psi. SWP
- Size: 1/4" - 2" Threaded NPT
- Max Operating Pressure:
- 2000 psig CWP 1/4"-1"
- 1500 psig CWP 1-1/4" - 2"
- 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body :A105
- Features:
- Forged Construction
- Fire Safe to API 607 (Requires -24 Suffix)
- Blow-out-proof Stem Design
- Adjustable Packing Gland
- Zinc Phosphate Corrosion Protection
-

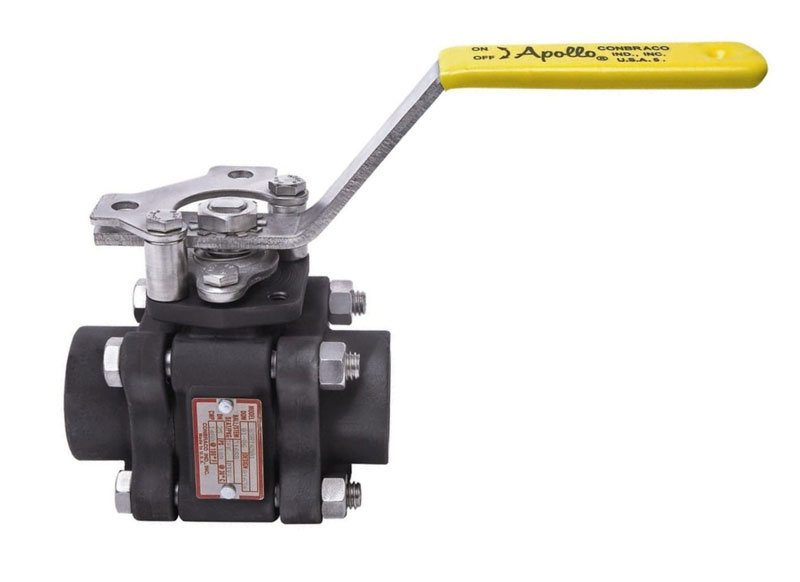

Apollo: 83A-XXX Series
Carbon Steel 3-pc Full Port Ball Valve
1500 psi. CWP, 150 psi. SWP
- Size:
- (83A-100) 1/4" - 2" Threaded NPT
- (83A-200) 1/4" - 2" Socket weld
- Max Operating Pressure:
- 1500 psig CWP, Cold Non-Shock
- 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body : ASTM A216-WCB
- Features:
- 3-Piece construction
- Full Port for Full Flow & Min. Pressure Drop
- Stainless Steel Trim & Hardware
- Fully Machined ISO 5211 Mounting
- Anti-Blowout One Piece Bottom Entry Stem
- Two-Position Locking
-

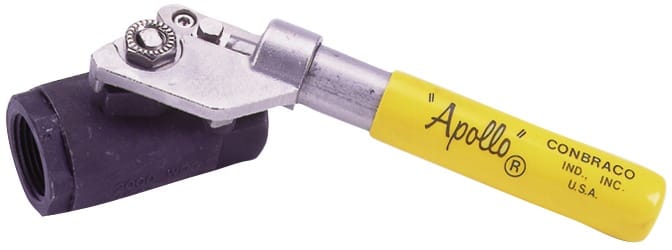

Apollo: 89-500 Series
CS Ball Valve w/Spring
Return Handle
2000 psi. CWP, 150 psi. SWP
- Size: 1/4" - 2" Threaded NPT
- Max Operating Pressure:
- 2000 psig CWP 1/4"-1"
- 1500 psig CWP 1-1/4" - 2"
- 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body : A216-WCB
- Features:
- Spring Return To Close or Open
- All components of lever are SS
- Operating Torque is Approximately 3-Times Standard Valve Torque
- Multifill PTFE Seat
- Blow-out-proof Stem Design
- Adjustable Packing Gland
- Fire Safe “by Design” (Requires -24 Suffix)
-

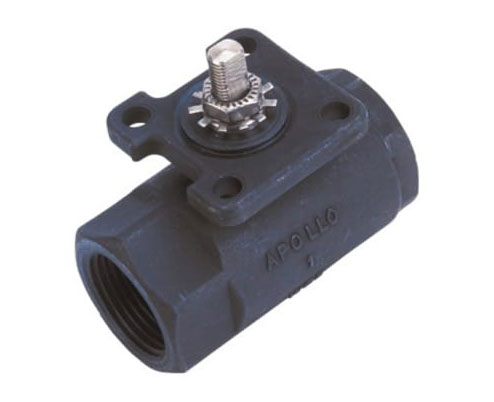

Apollo: 89-AR Series
CS Std.Port Ball Valve w/Actuator Ready
2000 psi. CWP, 250 psi. SWP
- Size: 1/4" - 3" Threaded NPT
- Max Operating Pressure:
- 2000 psig CWP 1/4"-1"
- 1500 psig CWP 1-1/4" - 2"
- 1000 psig CWP 2-1/2" - 3"
- 250 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- Material Body : A216-WCB
- Features:
- Multi-Piece Packing Set
- ISO 5211 Mounting Pad
- Stainless Steel Ball & Stem
- Multifill PTFE Seat
- Blow-out-proof Stem Design
- Adjustable Packing Gland
-
