Pneumatic & Electric Actuator
หัวขับวาล์ว ระบบลม และ ระบบไฟฟ้า



Apollo: AS & AD Series
Double Acting and Spring Return
Pneumatic Actuators

Apollo AS and AD Series Pneumatic Actuator
  • Torque Range:
    • Double Acting: 119 to 38510 lbf-in (13.4 to 4338 Nm) at 80 psig (5.5 barg)
    • Spring Return: 41 to 15867 lbf-in (5 to 1793 Nm) spring end torque at maximum spring set.
  • Pressure Range:
    • Double Acting: 29 to 120 psig (0.2 to 8.3 barg)
    • Spring Return: 87 to 120 psig (6 to 8.3 barg), with maximum spring set 43.5 to 120 psig (3 to 8.3 barg), reduced spring quantity
  • Cycle Life: Normal working life is 500,000 cycles according to EN15714-3, where 1 cycle is 1 open stroke and 1 close stroke.
    • pdf

หัวขับ Pneumatic ใช้สำหรับเปิด-ปิด Ball Valve, Butterfly Valve ควบคุมด้วยระบบลม

Apollo:AE Series
Electric Actuators
115 / 220 VAC, 12 / 24 VDC

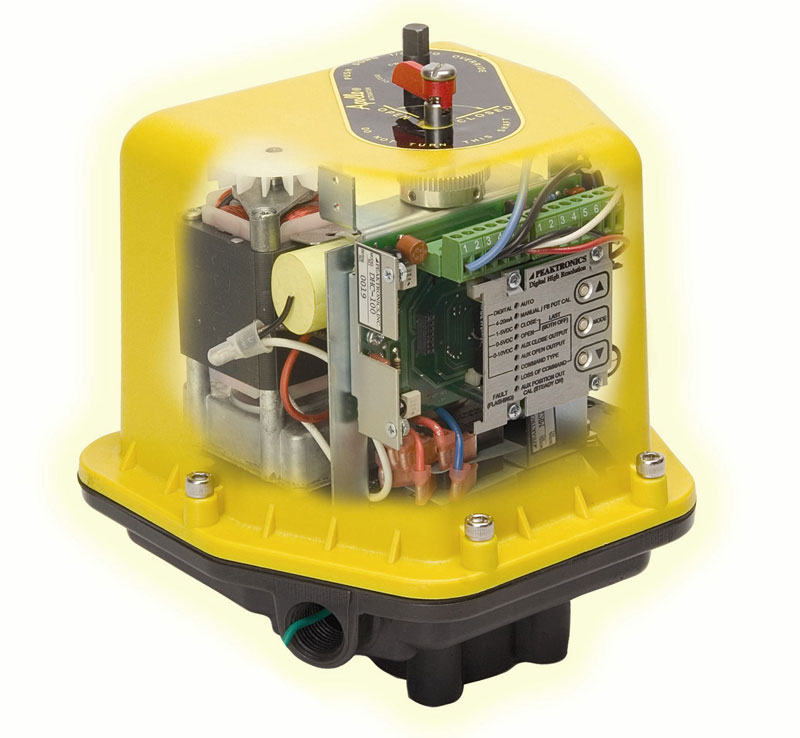

Apollo AE Series Electric Actuator
  • Electrical Input:
    • 115 AC & 220 AC models feature a 25% duty cycle below 100˚F
    • 24AC — 20% duty cycle below 100˚F
    • 12 and 24 DC — all DC voltage models provide 100% duty cycle for 1 hour after which DC motor is reduced to 80% duty cycle.
  • Reversible Rotation
  • ฺFIVE OUTPUT TORQUES, ONE HOUSING
    • 200, 400, 600, 800 and 1,000 inch-pounds
    • NEMA 4.4X
  • 4-20MA POSITIONER FEATURES (P - OPTION)
  • 4-20MA POSITION TRANSMITTER FEATURES (T - OPTION)
  • Actuators can be ordered with one, two or three additional limit switches
  • pdf

หัวขับ Electric ใช้สำหรับเปิด-ปิด-ควบคุม Ball Valve, Butterfly Valve ควบคุมด้วยระบบไฟฟ้า
